DC Multifunction Energy Meter

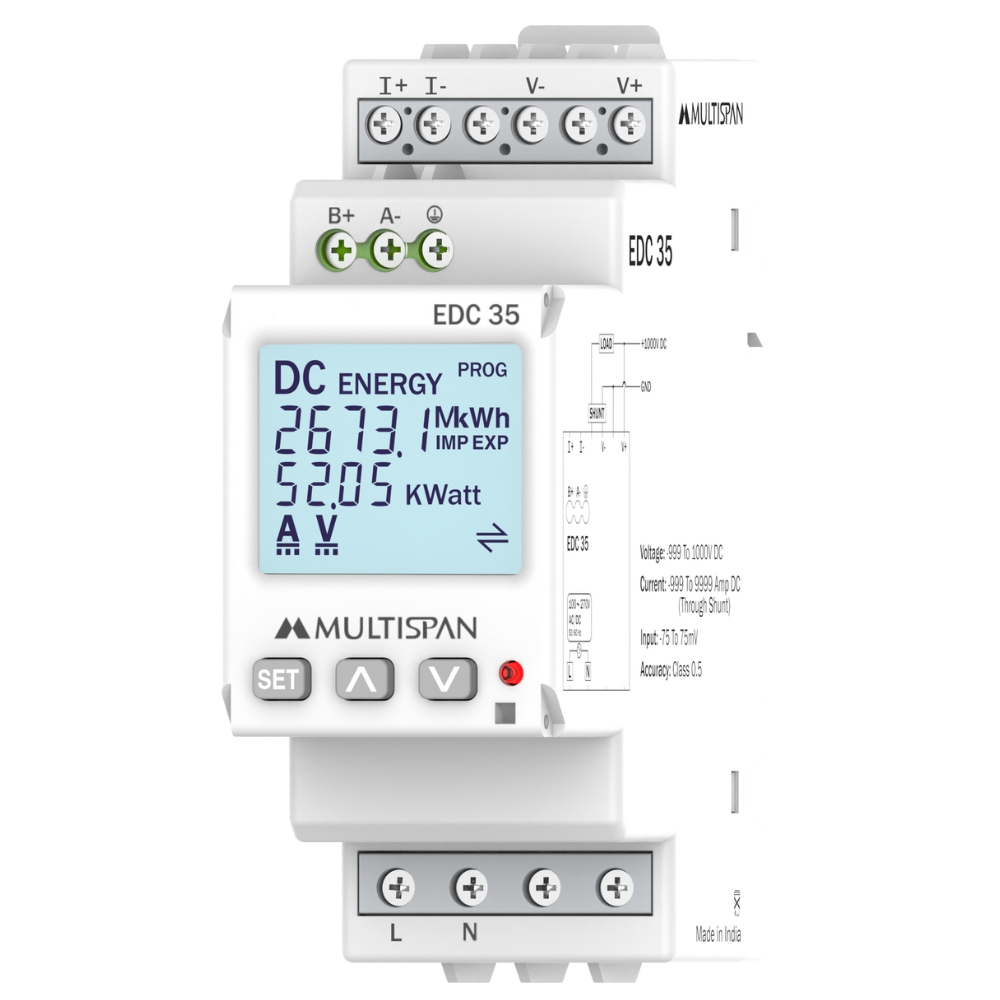

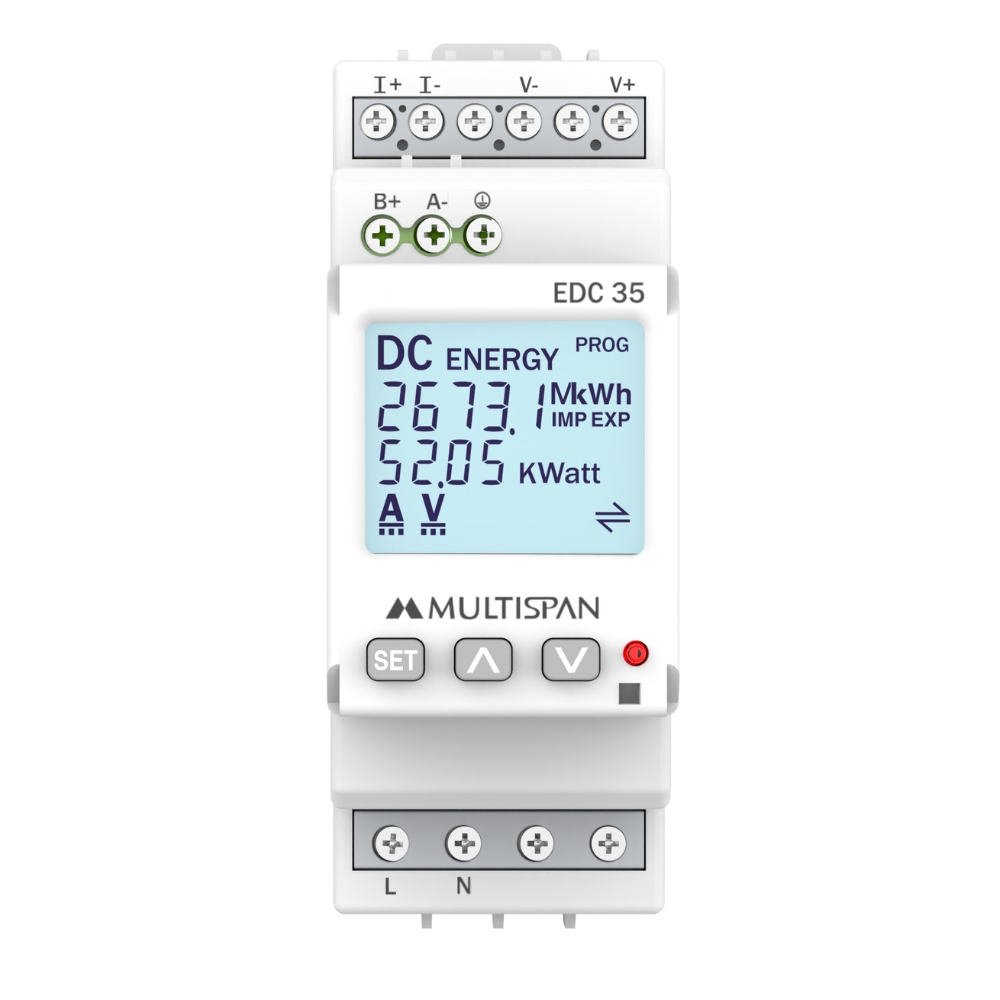

Introducing the EDC-352 DC Multifunction Energy Meter – a precision instrument engineered for accurate measurement and monitoring of DC electrical systems. Designed to suit a wide range of industrial and commercial applications, this meter supports wide DC current measurement through an external shunt and extensive DC voltage ranges. With built-in RS-485 Modbus communication and dual relay outputs for control and protection, it enables integration into energy management systems and automation platforms. The intuitive LCD display along with front panel keys allows easy viewing and configuration of all parameters. Key measurements include DC voltage, DC current, power (W/kW), and total energy (kWh), all with high accuracy and reliability.
Applications
The DC Multifunction Meter is ideal for power monitoring across a variety of DC environments. Commonly used in solar energy systems, battery banks, telecommunications power feeds, industrial DC power panels, and EV charging infrastructure, it enables precise tracking of DC parameters, energy production/consumption, and system performance. Its robust communication capabilities make it suitable for remote monitoring and integration into SCADA or EMS dashboards.
Construction & Design
Built for durability and reliable field performance, the EDC-352 meter features a compact form factor that fits standard panel cut-outs. It operates on a wide auxiliary supply range (24V to 270V AC/DC) and delivers measurements with accuracy class 0.5. The robust design supports harsh industrial environmental conditions and offers two Nos. relay outputs for alarms or control functions. With an easy-to-read LCD and tactile keys for configuration, this meter ensures user-friendly operation and long-term performance in demanding DC applications.
